3603 Setting Up Forward Lookup Zone for use with PointCentral

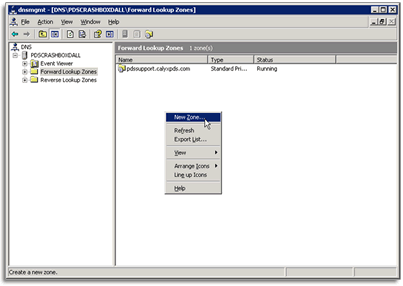

  1. Make a new forward lookup zone.

    3603 a

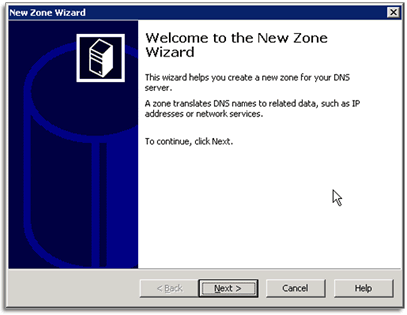

  2. Click Next from the New Zone Wizard window.

    3603 b

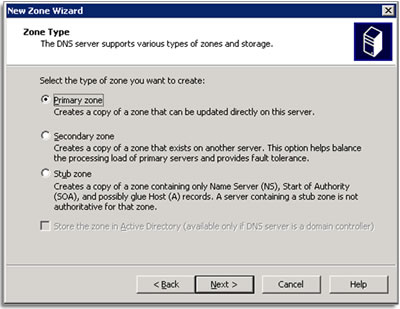

  3. Select Default Options and Click Next

    3603 c

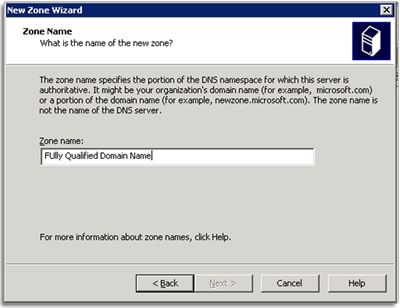

  4. You must use the FQDN setup in resolver. (For example: myname.calyxpds.com)

    3603 d

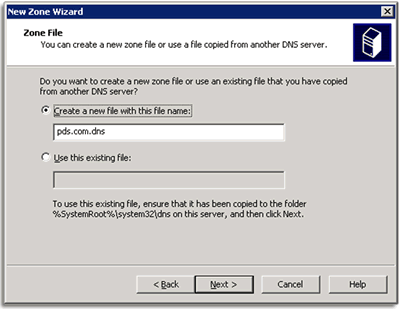

  5. Select Default Options and Click Next

    3603 e

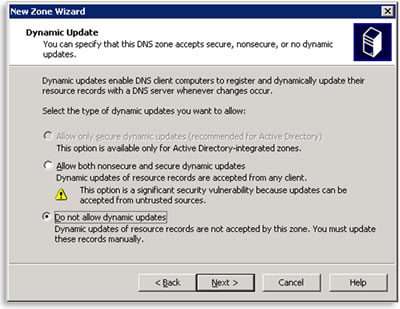

  6. Click Next after selecting Do not allow dynamic updates.

    3603 f

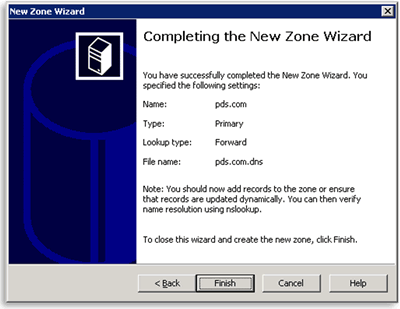

  7. Click Finish to complete the new zone wizard.

    3603 g

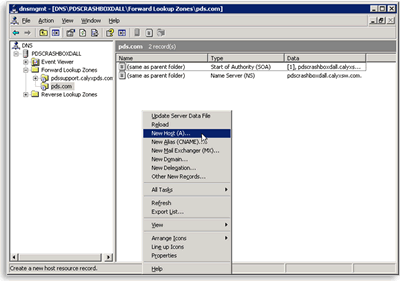

  8. Open the new zone and right click to make a new Host (A) record.

    3603 h

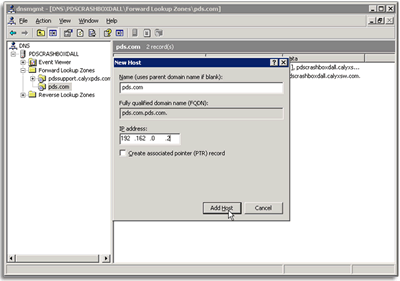

  9. Enter the local IP of the PDS Server you are setting up and leave the Name fields alone.

    3603 i
