3605 Installing IIS and required server roles

To install IIS and required server roles:

  1. Open Server Manager by doing one of the following:
    • From Windows, select Server Manager from the Windows taskbar.
    • From the Windows Start screen, select Server Manager from the Windows taskbar.

       3605 a

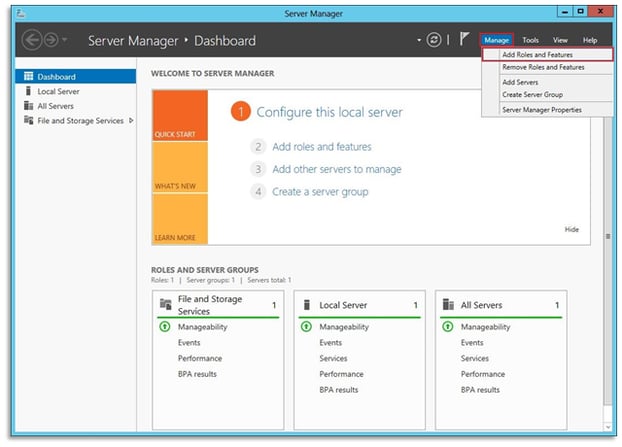

  2. Select Manage > Add Roles and Features.

     3605 b

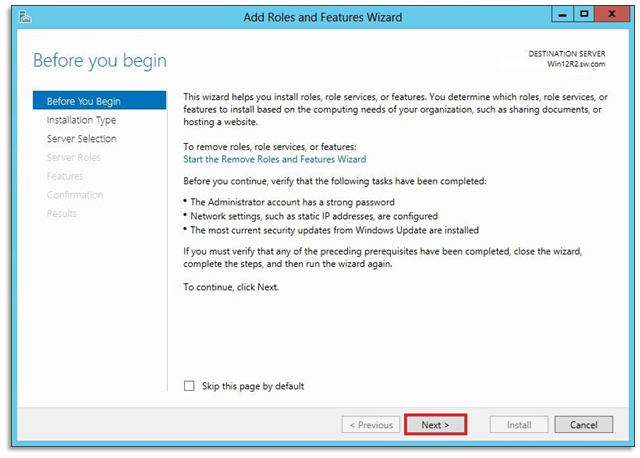

  3. Verify that your destination server and network environment are prepared for the role and feature you want to install.
  4. Click Next.

     3605 c

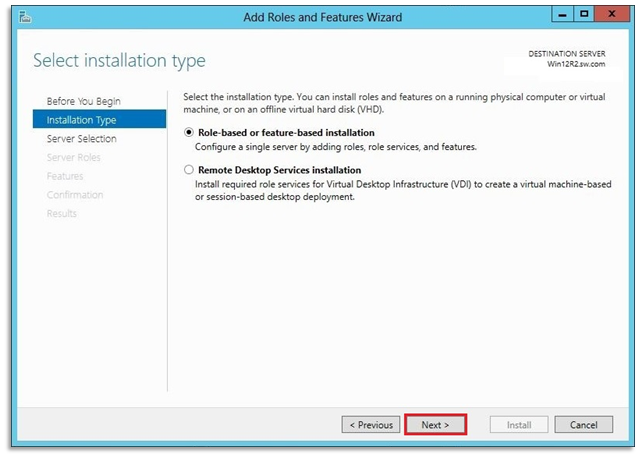

  5. Select Role-based or feature-based installation to install all components for roles or features on a single server and click Next.

     3605 d

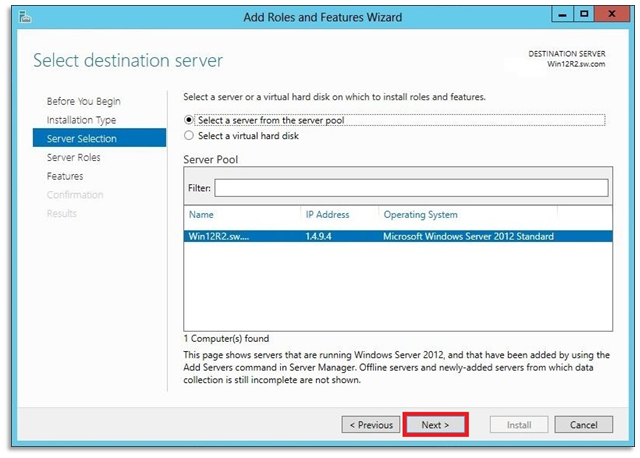

  6. Select a server from the server pool and click Next.

     3605 e

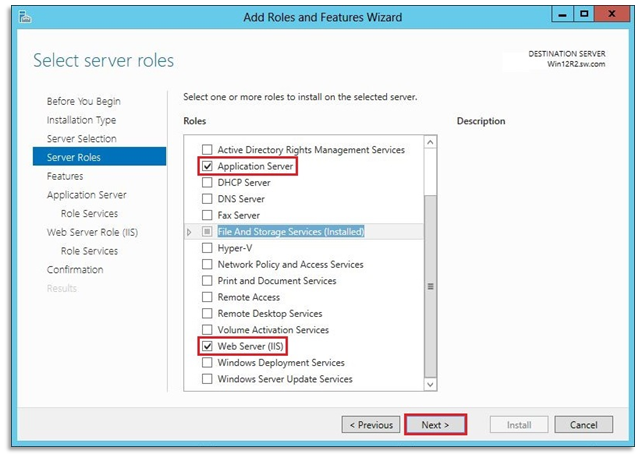

  7. Select Application Server and Web Server (IIS), and click Next

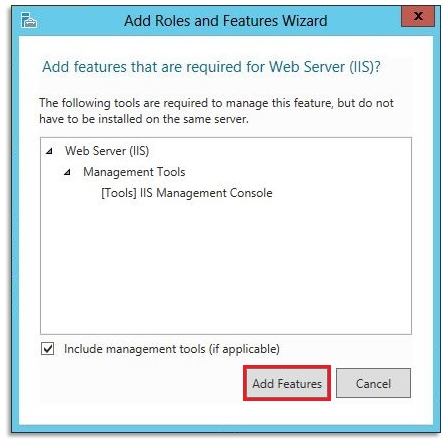

    Note: When selecting the Web Server (IIS) role the following message might display.

     3605 f

    Click Add Features to proceed.

     3605 g

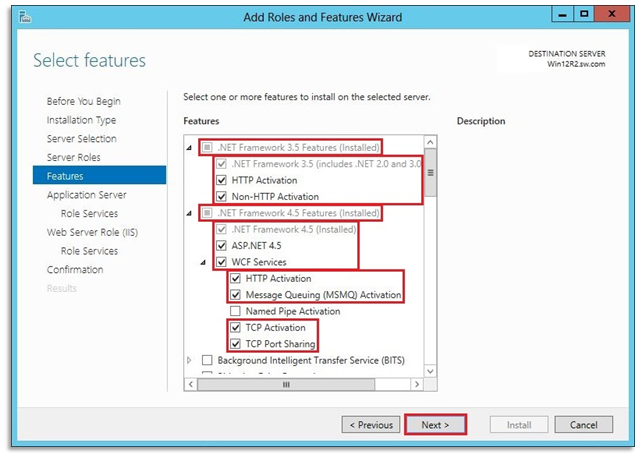

  8. Select all .NET Framework 3.5 Features and additional features.  For .NET Framework 4.5 Features select all features with the exception of Named Pipe Activation(you may have to uncheck the feature).
  9. If a message displays to confirm the additional features, click Add Features and click Next.

     3605 h

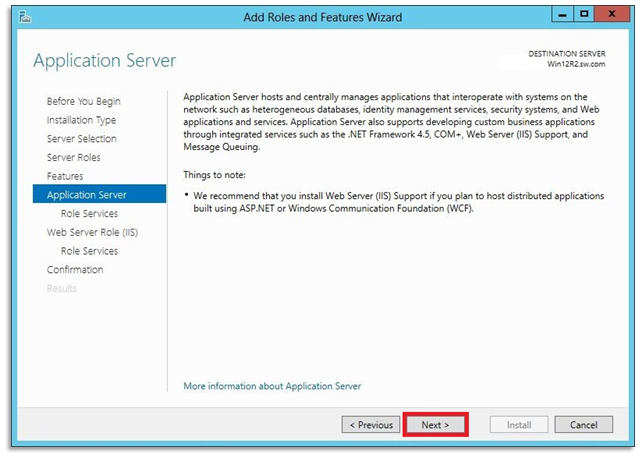

  10. Click Next to proceed to the Role Services page.

    3605 i

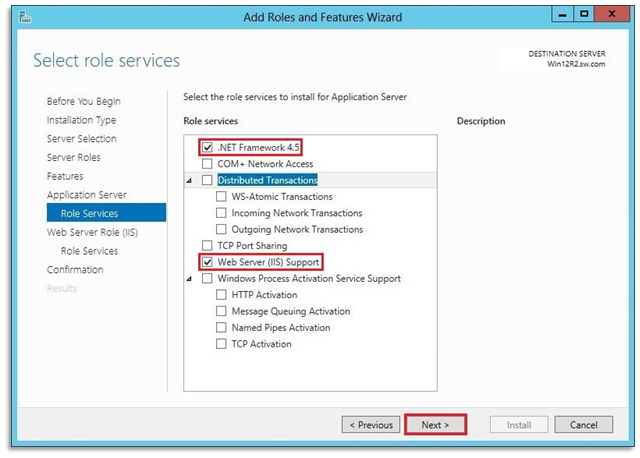

  11. Verify that .NET Framework 4.5 and Web Server (IIS) Support) are selected.
  12. If a message displays to confirm the additional features, click Add Features and click Next.

     3605 j

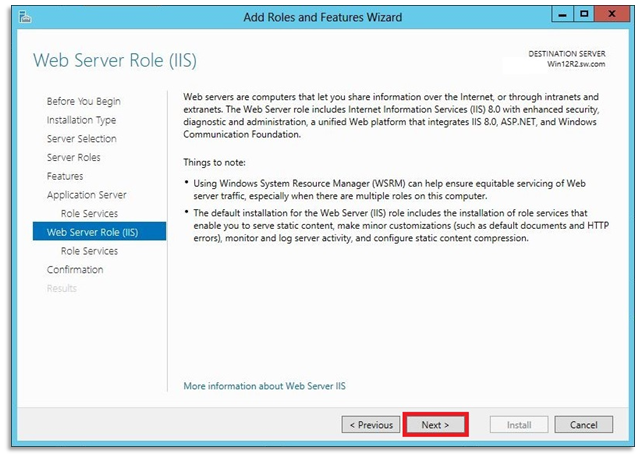

  13. Click Next to proceed to the Role Services page.

     3605 k

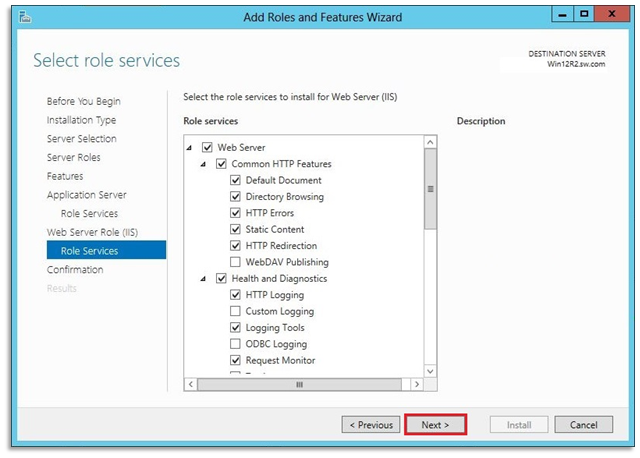

  14. Retain all default selections and click Next.

     3605 l

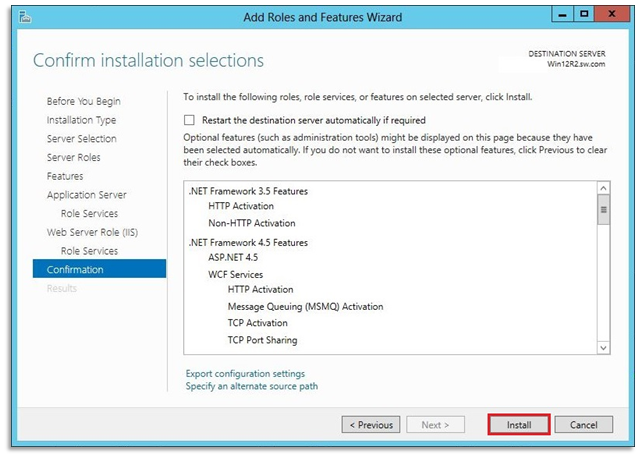

  15. Click Install.

     3605 m

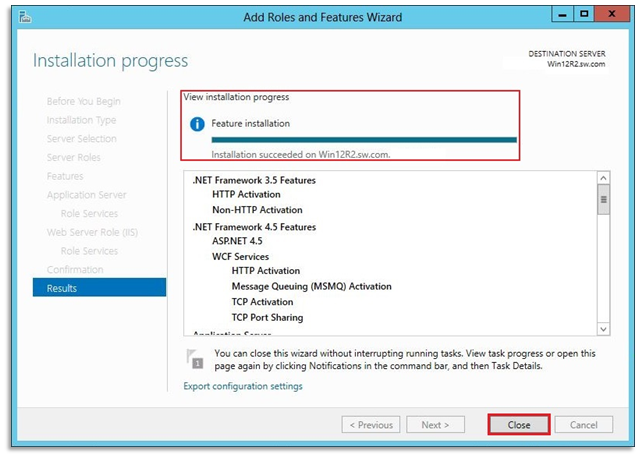

    A progress bar is shown and indicates the installation progress. You can close the Wizard or you can leave the wizard open while you wait for the installation to complete.

  16. When the Installation succeeded message is displayed, click Close.
