6302 The request failed with HTTP status 413: Request entity too large


When you save a Point file, the following error occurs: The Request failed with HTTP status 413: Request Entity Too Large.



There is an improper setting in IIS on the PointCentral server.



Enable client authentication in IIS Manager.

1. Go to the PointCentral Server.

2. Open IIS Manager.

6302 a

3. Expand the server name from the left hand panel.

4. Expand Sites.

5. Click Default Web Site.

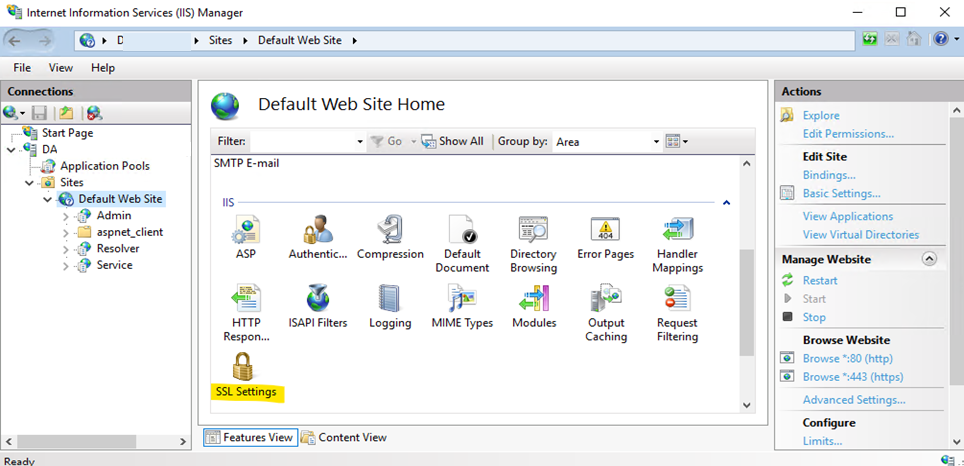

6. From the Default Web Site Home window, select the SSL Settings icon.

6302 b

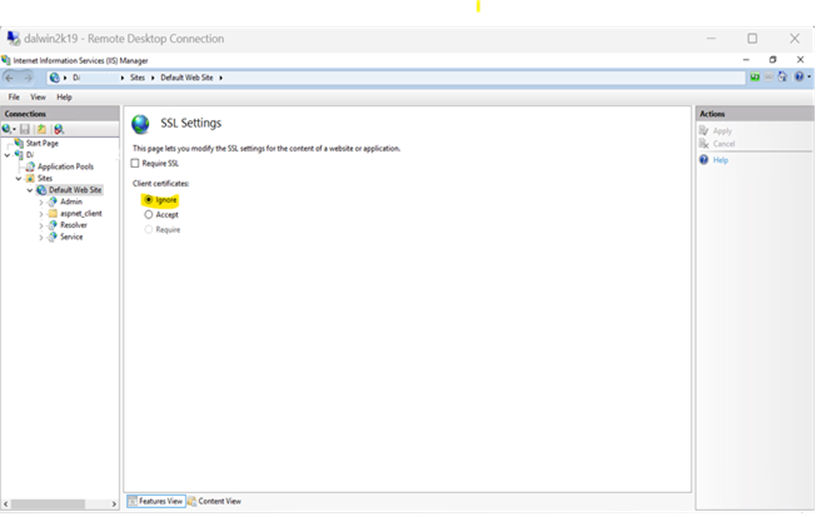

7. In the SSL Settings window, under Client certificates: select the Ignore radio button.

6302 c

8. Restart IIS.
